Old July 18th, 2008, 02:40 PM   #1
Major Player

Join Date: Aug 2006
Location: Larkspur, CA
Posts: 378
ENG Lens compatibility

So people are reporting (thanks for the post Pete) that the Z7/S270 won't control the servo zoom on Canon/Fuji ENG lenses. This is pretty much a disaster considering that the camera is sold based on interchangeability.

Can others please confirm this?

I was really hoping to pick up a Z7 or the S270 and use my Fuji 17x as the stock lens is too short for my work.
Justin Ferar is offline   Reply With Quote
Old July 18th, 2008, 04:28 PM   #2
DVi Contributor

Join Date: Mar 2006
Location: Austin Texas
Posts: 374
If by ENG you are referring to a B4 2/3rd lens. that is correct. there is not a port on the body for your control cable on that lens. the 1/2 inch (?) interchangable lens has control bottons located at the back of the mount. Thier is a step up adapter so you can mount 2/3rd lenes,, but all functrions become manual, and your focal field changes greatly.
Craig Chartier is offline   Reply With Quote
Old July 18th, 2008, 04:52 PM   #3
Major Player

Join Date: Aug 2006
Location: Larkspur, CA
Posts: 378
By ENG I'm talking about these lenses...

http://www.fujinon.com/Broadcast/Pro...ry.aspx?cat=28

They are all 1/3 inch HD ENG/EFP lenses. From what I've read the Sony has a 12 pin connection for lens control. I own the Fuji 17x but I haven't looked to see if it's 12 pin or not.
Justin Ferar is offline   Reply With Quote
Old July 18th, 2008, 05:16 PM   #4
DVi Contributor

Join Date: Mar 2006
Location: Austin Texas
Posts: 374
OK so the chip size is 1/3. I found the lens jack. it is a 12 pin, VERY COOL!!! hidden under the port cap on the side once you remove the Carl Zeiss piece of glass.

1/2 inch glass mounts with the Fujinon ACM-19 adapter
2/3 in lenses mount with fujinon ACM-17 adapter

I find new things hidden on this camera all the time. I wish they would make the pin port covers another color other than black so you can locate them quicker.

hope that helps
Craig Chartier is offline   Reply With Quote
Old July 18th, 2008, 07:57 PM   #5
Wrangler

Join Date: Aug 2005
Location: Toronto, ON, Canada
Posts: 3,637

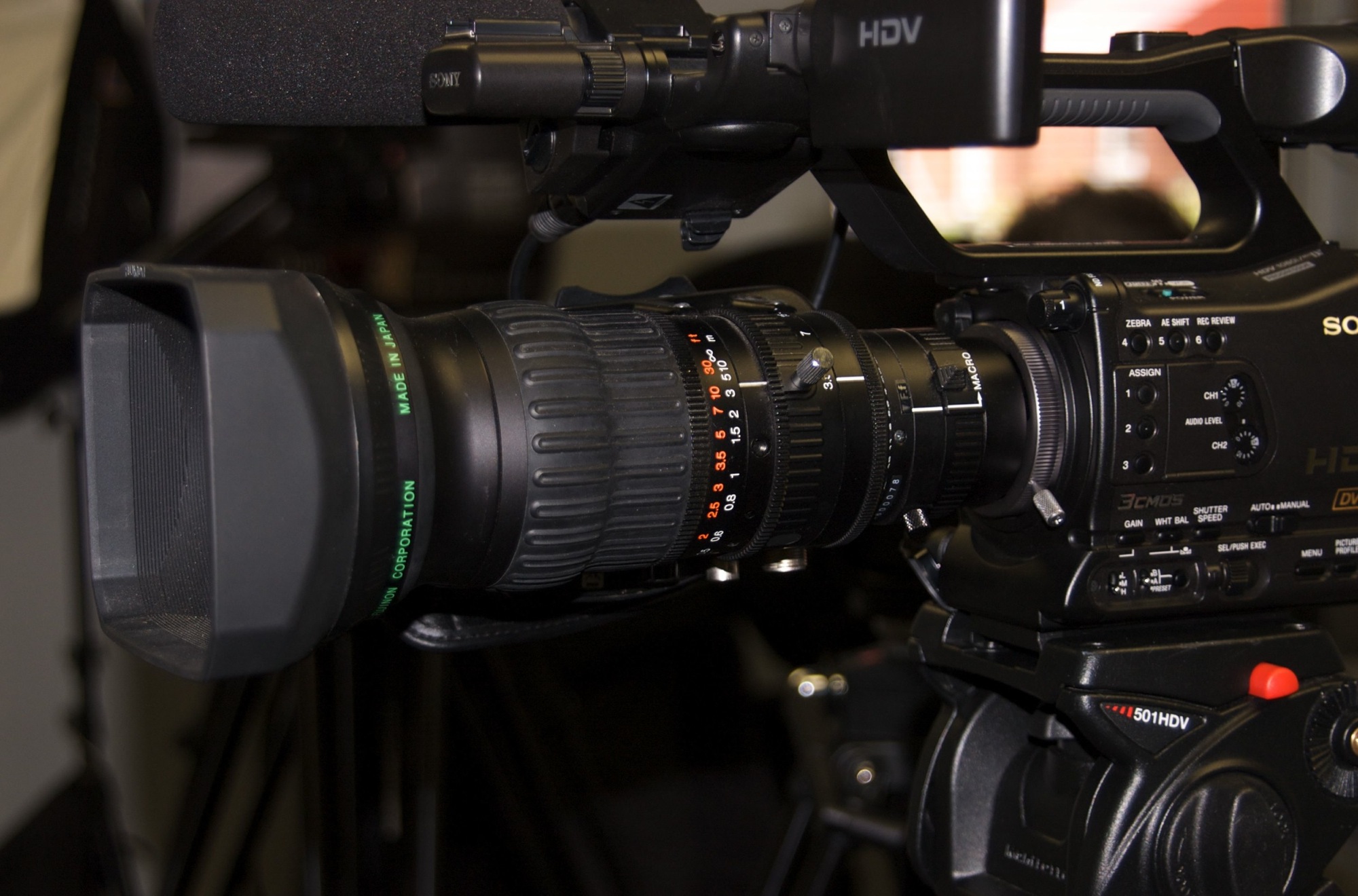

I can confirm that Fujinon lenses do work full servo. I've even used the Fuji 13x3.5BRM on the Z7 without any issues. Sorry I don't have a Canon lens to test.

Attachment 7719
__________________
Tim Dashwood
Tim Dashwood is offline   Reply With Quote
Old July 18th, 2008, 10:46 PM   #6
Major Player

Join Date: Aug 2006
Location: Larkspur, CA
Posts: 378
Quote:
Originally Posted by Tim Dashwood View Post
I can confirm that Fujinon lenses do work full servo. I've even used the Fuji 13x3.5BRM on the Z7 without any issues. Sorry I don't have a Canon lens to test.

Attachment 7719
Very Cool!
Justin Ferar is offline   Reply With Quote
Old July 18th, 2008, 11:33 PM   #7
Obstreperous Rex

Join Date: Jan 2001
Location: San Marcos, TX
Posts: 26,900
Images: 513
Thread title changed from "No ENG Lens compatibility?!!" to "ENG Lens compatibility."
__________________
CH

Search DV Info Net | DV Info Net Sponsors | A Decade (+5) of DVi | ...Tuesday is Soylent Green Day!
Chris Hurd is offline   Reply With Quote
Old July 20th, 2008, 05:07 AM   #8
Regular Crew

Join Date: Apr 2008
Location: Grange over Sands UK
Posts: 99
Thinking of buying

I am thinking of buying the 13x W/A Fuji zoom in the UK. Out of interest , how much does it cost in the US of A?
__________________
Cameraman BBC and ITV since 1966
Barry Wilkinson is offline   Reply With Quote
Old July 20th, 2008, 08:06 AM   #9
Trustee

Join Date: Apr 2008
Location: Cornsay Durham UK
Posts: 1,940
Quote:
Originally Posted by Barry Wilkinson View Post
I am thinking of buying the 13x W/A Fuji zoom in the UK. Out of interest , how much does it cost in the US of A?
I have also been looking at this lens the cheapest I can find is here:http://www.macmall.com/macmall/shop/...rce=mwbfroogle
__________________
Over 15 minutes in Broadcast Film and TV production: http://www.imdb.com/name/nm1044352/
Gary Nattrass is offline   Reply With Quote
Old July 20th, 2008, 11:34 AM   #10
Regular Crew

Join Date: Apr 2008
Location: Grange over Sands UK
Posts: 99
Questions

Its a shame it doesnt have a range extender. Any problem in buying in from the states? Do you have to pay duty ? Is the warranty void?
There seems to be no alternative as the Sony/Zeiss lens is only an 8 to 1 zoom. Maybe canon will provide soon?
__________________
Cameraman BBC and ITV since 1966
Barry Wilkinson is offline   Reply With Quote
Old July 20th, 2008, 10:48 PM   #11
Major Player

Join Date: Jul 2006
Location: United States
Posts: 306
Quote:
Originally Posted by Gary Nattrass View Post
I have also been looking at this lens the cheapest I can find is here:http://www.macmall.com/macmall/shop/...rce=mwbfroogle
Check www.resellerratings.com first.
Chuck Fadely is offline   Reply
