Advice about an extension cable for microphone of my camera

Hello,
I would like to use the microphone from my camera and put an extension cable on it to be able to do interviews, or even other things like singing.
I had seen this cable: https://www.amazon.it/SUCESO-Prolunga-Maschio-Intrecciato-Compatibile/dp/B07K46MDW5/ref=sr_1_3?__mk_it_IT=%C3%85M%C3%85%C5%BD%C3%[/url] 95% C3% 91 & dchild = 1 & keywords = suceso% 2Bcavo% 2Bextension% 2Baudio & qid = 1617519304 & s = electronics & sr = 1-3 & th = 1

I am also attaching a photo of the microphone cable jack.
https://www.dropbox.com/s/z440dfipor...audio.jpg?dl=0

Can you tell me if the microphone will work without problems?

I would also like to know if I can connect the extension jack on my Asus Zenbook, laptop, to be able to record voice.

THANK YOU for your kind info.
__________________
A lonesome traveler looking for lost tribes around the world: https://www.youtube.com/channel/UCdv...DrZCaaw/videos
Adriano Moroni is offline   Reply With Quote
Old April 4th, 2021, 07:32 AM   #2
Inner Circle

Join Date: Nov 2005
Location: Lowestoft - UK
Posts: 3,675
Re: Advice about an extension cable for microphone of my camera

Yes - that cable will do fine - the only snag with doing long cables using 3.5mm connectors is they fall out quite easily - so you need to take the weight off the connectors and use a bit of tape to stop pulls or moves pulling them out.

As for the computer? I'd plug it in and see what happens - usually, there are two possible scenarios - it will work, or it won't. Who knows? Why haven't you tried it?
Paul R Johnson is offline   Reply With Quote
Old April 4th, 2021, 07:59 AM   #3
Major Player

Join Date: Dec 2006
Location: Rome Italy
Posts: 558
Re: Advice about an extension cable for microphone of my camera

Thanks a lot for your interesting info.
Out of curiosity: it is constructed with Braided Nylon. Don't you think it's too stiff to put a microphone in?

My mic doesn't work with my Zenbook, maybe the reason is because it has only one connection for headphones and mic (both with same connection).
Thank you again.
__________________
A lonesome traveler looking for lost tribes around the world: https://www.youtube.com/channel/UCdv...DrZCaaw/videos
Adriano Moroni is offline   Reply With Quote
Old April 4th, 2021, 08:16 AM   #4
Inner Circle

Join Date: Nov 2005
Location: Lowestoft - UK
Posts: 3,675
Re: Advice about an extension cable for microphone of my camera

The stiffness is a different issue - conventional mic cable is larger and softer. 3.5mm cables are usually used fort headphone extensions, to be honest.

There is a warning that my very poor Italian makes me think about? It says it is NOT suitable for microphones. However this does say it is OK to connect up to speakers and other audio equipment - so I am GUESSING the cable is screened. If it is just three onscreen conductors then it will probably hum like the devil. However, for the price it is worth trying as it probably is screened. Not sure why they give the warning. Mic cable is fine for headphones, but unscreened headphones not for microphones - so it's a bit of a gamble to be honest -- BUT -- I think worth the risk. The wording suggests they don't really know much about it!
Paul R Johnson is offline   Reply With Quote
Old April 4th, 2021, 09:07 AM   #5
Trustee

Join Date: Aug 2008
Location: New York
Posts: 1,977
Re: Advice about an extension cable for microphone of my camera

Quote:
Originally Posted by Adriano Moroni View Post
My mic doesn't work with my Zenbook, maybe the reason is because it has only one connection for headphones and mic (both with same connection).
It likely needs a TRRS (tip-ring-ring-sleeve) 3.5mm plug. A standard headphone plug is TRS (tip-ring-sleeve). On many laptops, and some smart phones, standard HPs are compatible, There are adapters available on Amazon, eBay and elsewhere.. OR.. there may be a setting somewhere.
Rick Reineke is offline   Reply With Quote
Old April 4th, 2021, 09:20 AM   #6
Major Player

Join Date: Dec 2006
Location: Rome Italy
Posts: 558
Re: Advice about an extension cable for microphone of my camera

I don't understand well.
Maybe do you mean ir? http://www.amazon.it/dp/B07K47JRJ9/?...kCode=ogi&th=1
Thanks
__________________
A lonesome traveler looking for lost tribes around the world: https://www.youtube.com/channel/UCdv...DrZCaaw/videos
Adriano Moroni is offline   Reply With Quote
Old April 4th, 2021, 10:13 PM   #7
Trustee

Join Date: Jun 2010
Location: Seattle WA
Posts: 1,202
Re: Advice about an extension cable for microphone of my camera

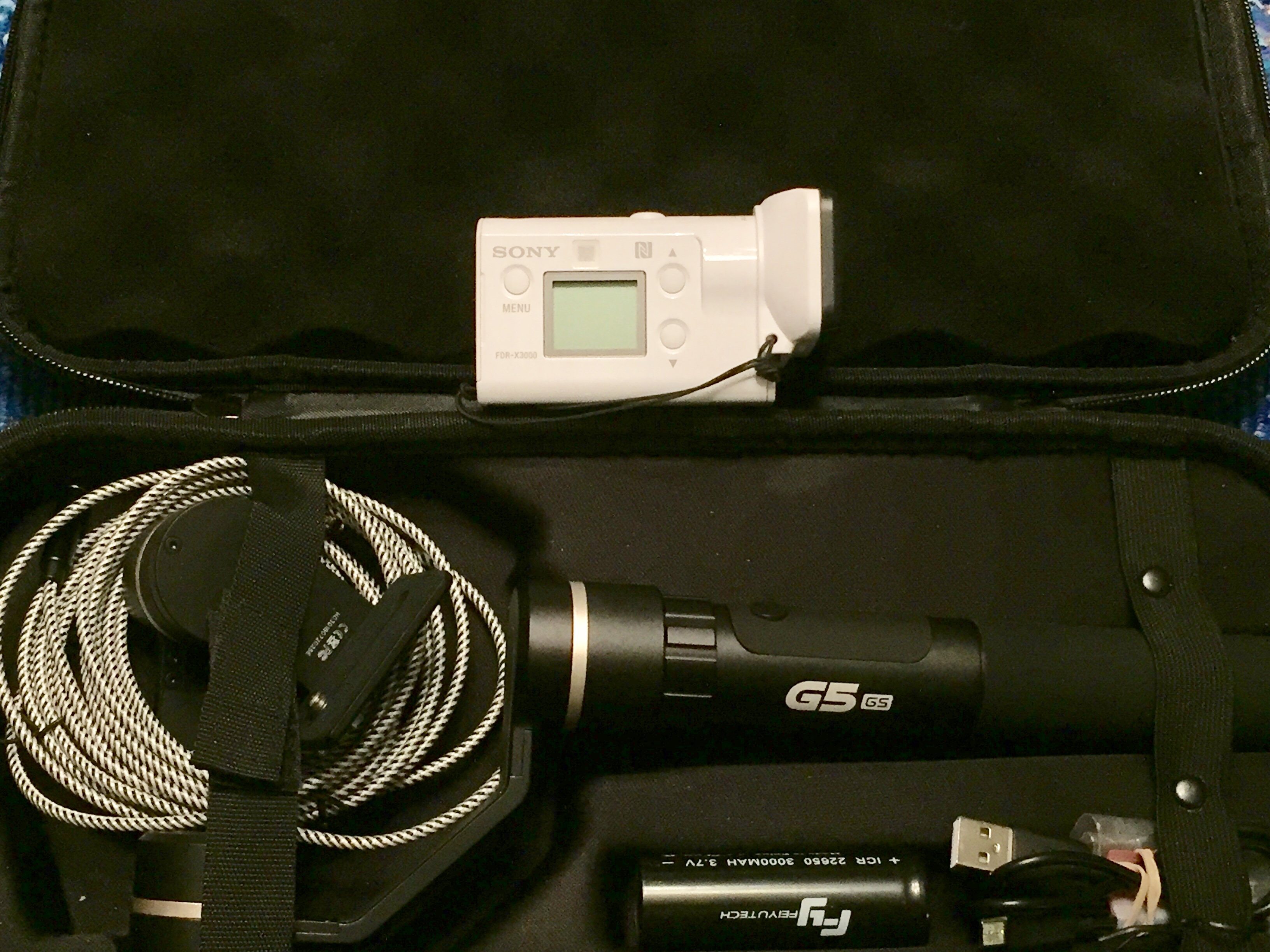

The braided sheath 3.5 mm cable option has one advantage and that is flexibility. I got a couple of them for use with a sport cam (Sony X3000) and an external recorder, while the cam was mounted on a gimbal. The cable had to be light-weight and very flexible so it wouldn’t impact movement of the cam on the gimbal.

To achieve a high degree of flexibility, you know that the internal conductors have to be really fine wires, so, given that, the qustion is, how robust is the cable? The concern “will work without problems?”, then just addressing the cable itself and not the end terminals, the answer would be “Yes”, but conditioned based on the quality of the audio and now long it would last.

If high flexibility and low weight is not a priority, or must-have, if it were me, I would spring for a more robust 3.5 mm cable that would likely last longer and provide a cleaner signal. I think the cable itself is delicate, and that is just a personal opinion. For the use I'm putting it to it works very well.
Attached Thumbnails
Advice about an extension cable for microphone of my camera-img_8187.jpg
John Nantz is offline   Reply With Quote
Old April 4th, 2021, 10:52 PM   #8
Regular Crew

Join Date: Feb 2015
Location: Lafayette, Colorado
Posts: 93
Re: Advice about an extension cable for microphone of my camera

Quote:
Originally Posted by Adriano Moroni View Post
My mic doesn't work with my Zenbook, maybe the reason is because it has only one connection for headphones and mic (both with same connection).
Thank you again.
Something like this might do it.

https://www.alzodigital.com/products...no-mic-adapter
Patrick Tracy is offline   Reply With Quote
Old April 5th, 2021, 12:22 AM   #9
Inner Circle

Join Date: May 2004
Location: USA
Posts: 2,794
Re: Advice about an extension cable for microphone of my camera

The mic might not work because it could require power or need more amplification than a laptop can provide. This is why most people use usb mics or an external mic pre amp when connecting it to a computer.

Last edited by Pete Cofrancesco; April 5th, 2021 at 01:28 AM.
Pete Cofrancesco is offline   Reply With Quote
Old April 5th, 2021, 02:03 AM   #10
Major Player

Join Date: Dec 2006
Location: Rome Italy
Posts: 558
Re: Advice about an extension cable for microphone of my camera

Quote:
Originally Posted by Pete Cofrancesco View Post
The mic might not work because it could require power or need more amplification than a laptop can provide. This is why most people use usb mics or an external mic pre amp when connecting it to a computer.
Do you mean if I buy a USB adapter, then my mic will work fine wirh laptop?
__________________
A lonesome traveler looking for lost tribes around the world: https://www.youtube.com/channel/UCdv...DrZCaaw/videos
Adriano Moroni is offline   Reply With Quote
Old April 5th, 2021, 06:37 AM   #11
Major Player

Join Date: Dec 2006
Location: Rome Italy
Posts: 558
Re: Advice about an extension cable for microphone of my camera

Quote:
Originally Posted by Patrick Tracy View Post
One last piece of advice since you are more experienced than me. But is there any software that you can install in the laptop that can split the headset from microphone, instead of buying that splitter cable? If there wasn't this possibility, I'll buy it tomorrow, but I'm curious to know if it can be done without it.
Thanks again.
__________________
A lonesome traveler looking for lost tribes around the world: https://www.youtube.com/channel/UCdv...DrZCaaw/videos
Adriano Moroni is offline   Reply With Quote
Old April 5th, 2021, 08:59 AM   #12
Inner Circle

Join Date: Nov 2005
Location: Lowestoft - UK
Posts: 3,675
Re: Advice about an extension cable for microphone of my camera

No - if your mic has a 3 circuit jack, and the camera is expecting a 3 circuit jack, then apart from the screening which we don't know - electrically it will work. Some computers are designed to use the 4 circuit connectors - so headphone L, headphone R, mic and shared ground. These will either work or not when you plug your mic into a computer socket - probably 50/50 depending on make and age.

A USB mic device usually has the expectation of a XLR balanced microphone being plugged in. This, you do NOT have.

It's the price of a happy meal - so order the cable and try it. All we can do is guess!
Paul R Johnson is offline   Reply With Quote
Old April 5th, 2021, 09:45 AM   #13
Trustee

Join Date: Aug 2008
Location: New York
Posts: 1,977
Re: Advice about an extension cable for microphone of my camera

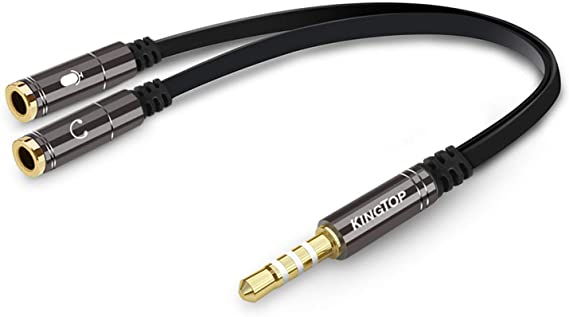

I recently bought a China made Y-adapter on Ebay for a two dollars. It has a single 3.5mm TRRS plug on one end, and two 3.5mm female jacks on the other, one for a mic, the other for headphones. It worked as it should, If you will using it a lot, better quality adapters can purchased from the usual smartphone suspects.
Rick Reineke is offline   Reply With Quote
Old April 5th, 2021, 11:31 AM   #14
Major Player

Join Date: Dec 2006
Location: Rome Italy
Posts: 558
Re: Advice about an extension cable for microphone of my camera

Now I understand better.
Do you have a pic of that cable please?
Thank you
__________________
A lonesome traveler looking for lost tribes around the world: https://www.youtube.com/channel/UCdv...DrZCaaw/videos
Adriano Moroni is offline   Reply With Quote
Old April 7th, 2021, 02:24 PM   #15
Trustee

Join Date: Aug 2008
Location: New York
Posts: 1,977
Re: Advice about an extension cable for microphone of my camera

<i>Do you have a pic of that cable please?</i>
Attached Thumbnails
Advice about an extension cable for microphone of my camera-61tvogjufkl._ac_sx569_.jpg
Rick Reineke is offline   Reply
