Old February 12th, 2007, 08:41 AM   #16
Trustee

Join Date: Aug 2006
Location: London UK
Posts: 1,939
Quote:
Originally Posted by Joel Aaron
Just a quick note for any HD-100 owners. You can flip the viewfinder eyepiece upside down very quickly to make shooting with an adapter easy. I've been able to go run and gun with my M2 by hard mounting the M2 to the HD-100 and flipping the eyepiece.

The Brevis looks awesome though. Is there any downside to using the faster ground glass? Wouldn't you just use it all the time?
You get a shallower depth of field with the other diffusers.

How do you find the M2 hard mounted on the M2, not too front heavy? What did you use?
__________________
Philip Bloom
Cinematographer, Director, Filmmaker www.philipbloom.net
Phil Bloom is offline   Reply With Quote
Old February 12th, 2007, 08:56 AM   #17
Major Player

Join Date: Jul 2004
Location: Phoenix, AZ - USA
Posts: 300
Quote:
Originally Posted by Phil Bloom
You get a shallower depth of field with the other diffusers.
Because you can shoot at a faster F-Stop? Seems odd to me that the diffuser would change the DOF if the lens is at the same F-Stop. For my taste I've actually found I prefer the look of F4-5.6 excepting when I'm in tight quarters.

Quote:
Originally Posted by Phil Bloom
How do you find the M2 hard mounted on the M2, not too front heavy? What did you use?
I use rails and the hard mount is a 55-55 coupler ring. I actually pulled apart the original achromat so it slides inside the Fujinon which saves a couple inches of total length and eliminates some edge blur because the achromat is so close to the Fujinon glass. Then I tape up the zoom, focus and macro. This whole setup finally made the M2 "set it up and forget it" for me.

To eliminate some of the front heavy feel I took off the motorized zoom on the Fujinon. I grip the rig with my right hand by the bottom of the M2. In that position I can rest my elbow on my chest- which is how I shoot a SLR. Much sturdier. I could add a pistol grip but I don't think it's needed.

I haven't test removing the rails and just using the Fuji grip as you could with the Brevis. That should work also... but I kinda like the rails supporting everything.

I'm holding out for a Red camera... but these rigs can put out some very nice pictures. I'd like to try that Brevis for the increased light. That sounds EXCELLENT. I almost hate to ask... but is there any benefit to the M2 with the Brevis out there?
Joel Aaron is offline   Reply With Quote
Old February 12th, 2007, 09:06 AM   #18
Trustee

Join Date: Aug 2006
Location: London UK
Posts: 1,939
Quote:
Originally Posted by Joel Aaron
Because you can shoot at a faster F-Stop? Seems odd to me that the diffuser would change the DOF if the lens is at the same F-Stop. For my taste I've actually found I prefer the look of F4-5.6 excepting when I'm in tight quarters.

I almost hate to ask... but is there any benefit to the M2 with the Brevis out there?
The CF2 and CF3 let through less light, causing the Bokeh to change, they are less translucent. Am sure someone here can explain better! I compare them to different type of film stock (without the grain!) faster film (standard diffuser) for indoors and low light through to slow film (CF3 for bright sunlight or more shallow portraity look)

Tought question that last one. The M2 does give a really nice image... and once hard mounted you will get a great image again and again. I guess my shootout explains the differences best and which one you really need.
__________________
Philip Bloom
Cinematographer, Director, Filmmaker www.philipbloom.net
Phil Bloom is offline   Reply With Quote
Old February 12th, 2007, 09:56 AM   #19
Major Player

Join Date: Jun 2005
Location: Grand Rapids, MI
Posts: 320
Quote:
Originally Posted by Joel Aaron
Just a quick note for any HD-100 owners. You can flip the viewfinder eyepiece upside down very quickly to make shooting with an adapter easy.
The day I discovered this was a good day for me. ;-)
Chad Terpstra is offline   Reply With Quote
Old February 12th, 2007, 10:06 AM   #20
Trustee

Join Date: Aug 2006
Location: London UK
Posts: 1,939
i find the output quite noisy from my camera. is this normal? There doesnt appear to be a way to set gain to -3db
__________________
Philip Bloom
Cinematographer, Director, Filmmaker www.philipbloom.net
Phil Bloom is offline   Reply With Quote
Old February 12th, 2007, 02:28 PM   #21
Major Player

Join Date: Oct 2006
Location: sydney, australia
Posts: 221
Are you refering to the HD200?

As i am having the exact same problem.

A couple of others were as well - a couple of weeks ago, there was a thread about it.
Tyson Perkins is offline   Reply With Quote
Old February 12th, 2007, 02:37 PM   #22
Trustee

Join Date: Aug 2006
Location: London UK
Posts: 1,939
I have searched for an answer but couldnt find one. Yes refering to the HD200
__________________
Philip Bloom
Cinematographer, Director, Filmmaker www.philipbloom.net
Phil Bloom is offline   Reply With Quote
Old February 12th, 2007, 04:54 PM   #23
Major Player

Join Date: Oct 2006
Location: sydney, australia
Posts: 221
Is it worse than other cams - you have used? I have no experience with other hd cams so i wouldnt know - do you think it is a problem with the camera
Tyson Perkins is offline   Reply With Quote
Old February 12th, 2007, 05:02 PM   #24
Major Player

Join Date: Jul 2004
Location: Phoenix, AZ - USA
Posts: 300
Quote:
Originally Posted by Phil Bloom
i find the output quite noisy from my camera. is this normal? There doesnt appear to be a way to set gain to -3db
I don't know much about the HD-200 but I do know I tested my HD-100 against the HVX200 and I thought the JVC was a lot better... but there still is noise.

These adapters really show off the noise because you see it in the smooth gradations of the out of focus areas. I think noise is less noticeable in the sharp details of a deep DOF picture.
Joel Aaron is offline   Reply With Quote
Old February 12th, 2007, 05:04 PM   #25
Trustee

Join Date: Aug 2006
Location: London UK
Posts: 1,939
Yes I think so, I noticed it straight away, am not talking with the adaptor am talking clean shots...seems a bit crazy to have to fix it in post which is what the other thread says...

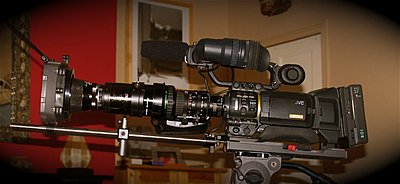

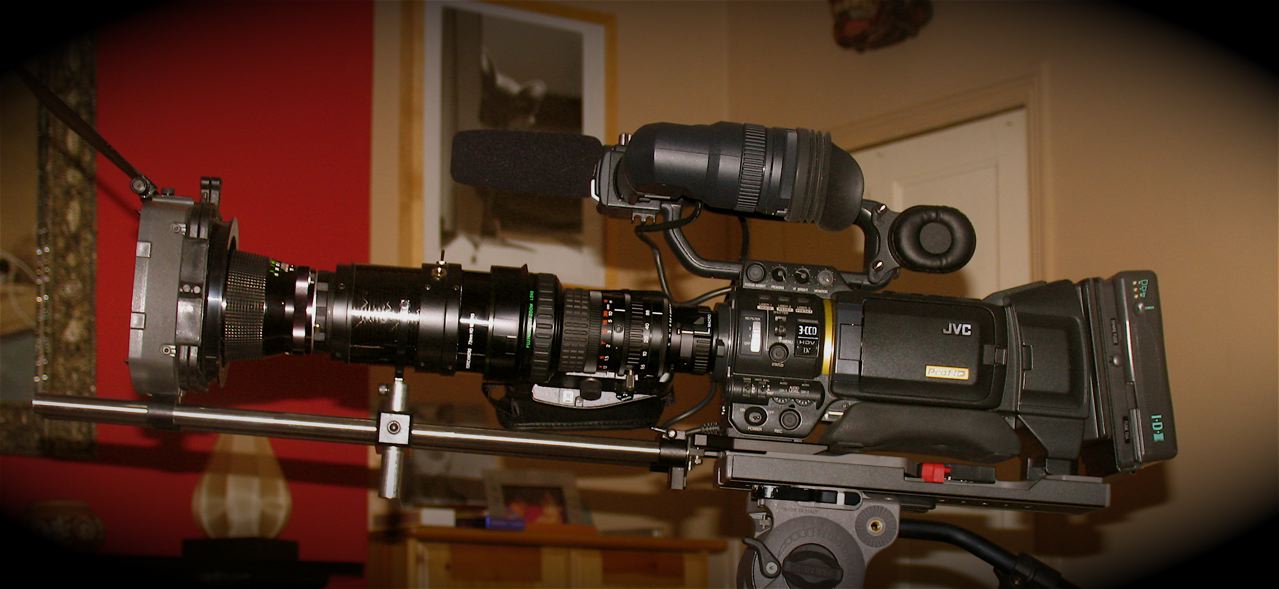

Here is a new pic of the JVC with the Brevis. I will set it up with the M2 soon.
Attached Thumbnails
JVC HD 201 and 35mm adaptors-jvc.jpg
__________________
Philip Bloom
Cinematographer, Director, Filmmaker www.philipbloom.net
Phil Bloom is offline   Reply With Quote
Old February 12th, 2007, 09:45 PM   #26
Major Player

Join Date: Oct 2006
Location: sydney, australia
Posts: 221
Do you think this is something that JVC could fix - as i am considering selling if this case remains - its not a big ask to want clean images.
Tyson Perkins is offline   Reply With Quote
Old February 12th, 2007, 11:22 PM   #27
Major Player

Join Date: Jul 2004
Location: Phoenix, AZ - USA
Posts: 300
Quote:
Originally Posted by Tyson Perkins
Do you think this is something that JVC could fix - as i am considering selling if this case remains - its not a big ask to want clean images.
I remember saying that before I sold my HVX200. I've got a friend with an F-900. It has noise. I was just watching the DVD of "Bubble" which was shot on the F-950 and it had noise. You're gonna deal with it to some degree no matter what you do.

The only thing I can recommend is never shoot at higher than F5.6 on any of these little cameras. You'll get really noisy images for some technical reason I can't recall right now.

As to anything specific to the HD-200 I'd be curious if anyone else can comment.
Joel Aaron is offline   Reply With Quote
Old February 13th, 2007, 04:01 PM   #28
Trustee

Join Date: Aug 2006
Location: London UK
Posts: 1,939
it is definatley noisier than my xdcam f350 and my z1
__________________
Philip Bloom
Cinematographer, Director, Filmmaker www.philipbloom.net
Phil Bloom is offline   Reply With Quote
Old February 13th, 2007, 04:08 PM   #29
Major Player

Join Date: Oct 2006
Location: sydney, australia
Posts: 221
Yes, i am thinking about selling if i cannot find a resolution for this problem
Tyson Perkins is offline   Reply With Quote
Old February 13th, 2007, 04:22 PM   #30
Major Player

Join Date: Jul 2004
Location: Phoenix, AZ - USA
Posts: 300
Quote:
Originally Posted by Phil Bloom
it is definatley noisier than my xdcam f350 and my z1
Z1 was very clean in my tests... I'm not sure there's another one of these little HD cameras as clean as that one. But the Z1 has no 24p and the codec isn't as strong based on my tests. The dynamic range and color rendition on the JVC's are better too. Just depends on where your priorities are. I knew the HD-100 was noisier than the Sony when I bought, but compared to that HVX it looks great to me.
Joel Aaron is offline   Reply
