Old June 21st, 2010, 11:55 AM   #556
Trustee

Join Date: Sep 2004
Location: Bristol, CT (Home of EPSN)
Posts: 1,182
Quote:
Originally Posted by Wolfgang Winne View Post
It's only one PP! The version 1.03 is current.

FL Light has the best color vectorangel on the vectorscop for my EX1R. Here a picture of 3 PP:

top without PP, my -3dB PP v1.03,

then this PP:

Matrix: On
Select: Cinema
Level: +35
CC: off
Detail: on
Level: -8
Frequency: +30
Crispening: +20
Gamma: +-0
Select: CINE1
Black: -4
Wolf, is this the entire profile?
Do EX1R profiles work on an EX1?
__________________
Paul Cascio
www.pictureframingschool.com
Paul Cascio is offline   Reply With Quote
Old June 21st, 2010, 12:09 PM   #557
Regular Crew

Join Date: Nov 2005
Location: Bremen, Germany
Posts: 176
<Wolf, is this the entire profile?>

no.....no.

here is the "-3dB" Profil:

http://www.fxsupport.de/pic/2010/pp/pp02.jpg

http://www.fxsupport.de/pic/2010/pp/pp03.jpg

http://www.fxsupport.de/pic/2010/pp/pp04.jpg

http://www.fxsupport.de/pic/2010/pp/pp05.jpg

http://www.fxsupport.de/pic/2010/pp/pp06.jpg

http://www.fxsupport.de/pic/2010/pp/pp07.jpg

http://www.fxsupport.de/pic/2010/pp/pp08.jpg

http://www.fxsupport.de/pic/2010/pp/pp09.jpg

http://www.fxsupport.de/pic/2010/pp/pp10.jpg

http://www.fxsupport.de/pic/2010/pp/pp11.jpg

<Do EX1R profiles work on an EX1? >

I do not know it.

"S-LOG" and "Casablanca" PP comes later.....
__________________
Wolfgang Winne
www.ohrwurmaudio.de www.fxsupport.de
Wolfgang Winne is offline   Reply With Quote
Old June 21st, 2010, 02:24 PM   #558
Major Player

Join Date: Sep 2008
Location: Vancouver, Canada
Posts: 975
Some initial impressions of Wolfgang's v1.03 PP...

Very nice rich blacks with a bump in the highlights. The shadow detail in the blacks is more visible than some of the other PPs around, such as the RC and TC PPs, as well as the CINE V "Panny" profile. With some quick tests I noticed the darker Blue-Greens were richer but overall a neutral profile from a colour perspective. If I were to characterize it in comparison to another profile probably the best reference would be the lush CINE V profile that emulates the rich and deep Panisonic look that you get on their cameras but without the hyped up greens and yellows that are so typical of Panasonic's colour palette. As mentioned Wolfgang's 1.03 PP has more shadow detail but rich blacks. I'd say this is a huge plus for this profile.

These comments are just impressions based on half an hour of taking shots both inside under tungsten lighting conditions and outside with overcast skies.

The major colour "yanking" (adjustment) has me a bit concerned and I did notice some major twitter happening in the midrange but only visible on the historgram built into the EX3 I am using.

So far I really like this profile and think it has use both indoors and in daylight situations.
Andrew Stone is offline   Reply With Quote
Old June 22nd, 2010, 12:06 AM   #559
Regular Crew

Join Date: Nov 2005
Location: Bremen, Germany
Posts: 176
<Some initial impressions of Wolfgang's v1.03 PP...>

Testpicture?

In the next time comes the new S-LOG PP and the wonderfull black/white Profil in the design from "Casablanca" Bluray.
Attached Thumbnails
Picture Profile Recipes-casablanca-foto.jpg
__________________
Wolfgang Winne
www.ohrwurmaudio.de www.fxsupport.de
Wolfgang Winne is offline   Reply With Quote
Old June 22nd, 2010, 12:43 AM   #560
Major Player

Join Date: Nov 2009
Location: White Rock
Posts: 254
I use EX3

Hello Wolfgang and Andrew,
Yes, I did try Wolf's PP1.03 today too and its good just as you said Andrew. I am not a DOP and I really appreciate what Wolfgang has done. We all would benefit from his talent, time, effort and of course the equipment he uses.

Thank you
Luben

Last edited by Luben Izov; June 22nd, 2010 at 10:47 AM.
Luben Izov is offline   Reply With Quote
Old June 22nd, 2010, 01:15 AM   #561
Regular Crew

Join Date: Nov 2005
Location: Bremen, Germany
Posts: 176
<please try the settings below and tell me what you think please.>

O.K. i show your PP in my vectorscop with colorchart.....
__________________
Wolfgang Winne
www.ohrwurmaudio.de www.fxsupport.de
Wolfgang Winne is offline   Reply With Quote
Old June 22nd, 2010, 01:34 AM   #562
Major Player

Join Date: Jun 2007
Location: Kråkstad Norway.
Posts: 229
I have been on this forum for quite a while and have recently purchased the PMW-EX3 after the advice I have been reading on this forum area.

I would just like to thank you all for the work you are doing on profiles which I find very useful.
Many thanks

Gary
__________________
http://www.mlotv.com
Gary Brun is offline   Reply With Quote
Old June 22nd, 2010, 02:27 AM   #563
Regular Crew

Join Date: Nov 2005
Location: Bremen, Germany
Posts: 176

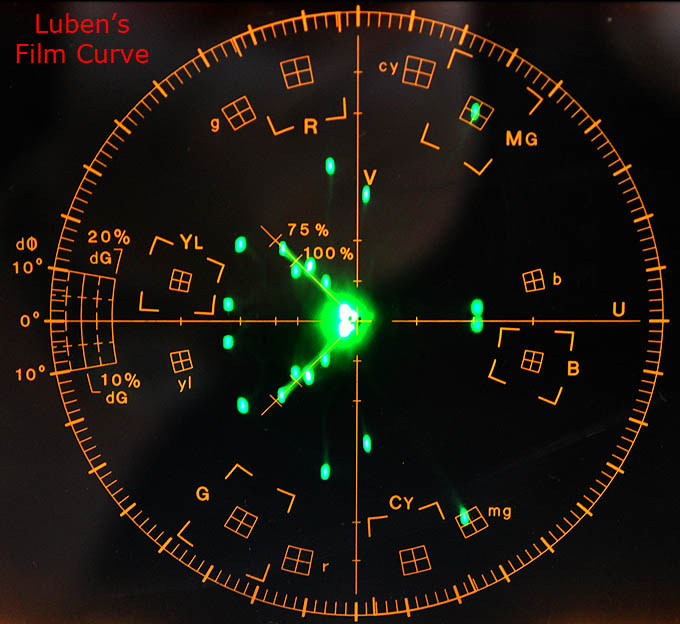

Luben's Film Curve (My EX1R with vectorscop and DSC-Laboratories colorchart.
Attached Thumbnails
Picture Profile Recipes-lubensfilmcurve.jpg
__________________
Wolfgang Winne
www.ohrwurmaudio.de www.fxsupport.de
Wolfgang Winne is offline   Reply With Quote
Old June 22nd, 2010, 05:22 AM   #564
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Hi Wolfgang,

I appreciate your effort to get the best color and latitude possible, but....

- have you also considered the detail vs. noise factors?
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old June 22nd, 2010, 05:31 AM   #565
Regular Crew

Join Date: Nov 2005
Location: Bremen, Germany
Posts: 176
<- have you also considered the detail vs. noise factors?>

Yes, calibrate on ISO 12233 Test Chart.
__________________
Wolfgang Winne
www.ohrwurmaudio.de www.fxsupport.de
Wolfgang Winne is offline   Reply With Quote
Old June 22nd, 2010, 05:37 AM   #566
Inner Circle

Join Date: Aug 2006
Location: Poland
Posts: 4,086
Well, what I mean is your settings for Frequency and Crispening (also, Black/White Limiter).

Quite opposite to what has been long established as optimizing detail vs. noise, don't you think?

If you have investigated this thoroughly, I'd appreciate a more detailed explanation.

Thanks

Piotr
__________________
Sony PXW-FS7 | DaVinci Resolve Studio; Magix Vegas Pro; i7-5960X CPU; 64 GB RAM; 2x GTX 1080 8GB GPU; Decklink 4K Extreme 12G; 4x 3TB WD Black in RAID 0; 1TB M.2 NVMe cache drive
Piotr Wozniacki is offline   Reply With Quote
Old June 22nd, 2010, 06:01 AM   #567
Regular Crew

Join Date: Nov 2005
Location: Bremen, Germany
Posts: 176
Crisping:
+ value = no details, no noise
- Value = more details, more noise

frequency:
+ value = no details
- value = more details

adjusted optical from my sony flat screen.
__________________
Wolfgang Winne
www.ohrwurmaudio.de www.fxsupport.de
Wolfgang Winne is offline   Reply With Quote
Old June 22nd, 2010, 10:53 AM   #568
Major Player

Join Date: Nov 2009
Location: White Rock
Posts: 254
Thank you

Thank you Wolfgang!,
That's a pretty good looking chart, isn't?....;-) I am sure that could get better in the v-scope.
Danke Wolf!
Luben
Luben Izov is offline   Reply With Quote
Old June 22nd, 2010, 11:35 AM   #569
Regular Crew

Join Date: Nov 2005
Location: Bremen, Germany
Posts: 176
<I am sure that could get better in the v-scope. >

Cine1 - cine4 not good for neutrally colors!
__________________
Wolfgang Winne
www.ohrwurmaudio.de www.fxsupport.de
Wolfgang Winne is offline   Reply With Quote
Old July 6th, 2010, 08:57 PM   #570
Major Player

Join Date: Jan 2007
Location: Ottawa, Canada
Posts: 836
Hi there,
Attached below is my attempt at a side-by-side comparison of a number of different picture profiles, copied and pasted from contributors to this thread.

I've owned an EX-1 practically since they came out in 2008, and — this is a personal confession — I've never bothered with picture profiles, mostly because I had so much else to learn. Today I decided to see if there were any posts on the subject, and I've spent the last few hours immersed in this thread. Way too much information for me to remember, particularly as most of it's Greek to me in the first place, so I decided my only hope would be to create a chart that listed different picture profiles, side-by-side. Then perhaps I'd be able to stand back from it and make some sense of it.

For better or for worse — and with apologies to both the picture-profile authors whose settings I might have gotten wrong (sometimes I'd get them from a poster who was repeating them), and to those whose picture profiles I've inadvertently left out — attached below is the beginning of a chart that people might find useful.
I do understand, after reading through those 38 pages, that settings sometimes come down to personal preference: some people like certain colours or 'looks' whatever better than others, and some people would rather correct in post.

But what I'd really like to do (because I edit my own stuff, and don't want to have to correct in editing if I can help it) is get a few really nice picture profiles that will work for daytime outside, night-time outside, inside incandescent and inside fluorescent. Or... if there is one really good one, a pp that will be a really good general pp.

I'll attempt to attach this. And if in fact any of you think this might be useful, I hope you'll correct it (some pp's may be out of date; remember, this thread started in 2008) or add to it. And thanks to all of you who contributed these picture profiles over the years.
Regards, Malcolm
Attached Files
File Type: xls Picture Profiles compendium.xls (37.0 KB, 1317 views)
