Old January 30th, 2009, 10:26 AM   #421
Regular Crew

Join Date: Dec 2006
Location: tel aviv israel
Posts: 107
just finished to shoot commercial with the ex-3

i used the camera with canon 4.7 2/3 HD LENS

i used philip bloom set-up

with the add of
detail level________ -15
frequency_________ 20

it was beautiful
Attached Thumbnails

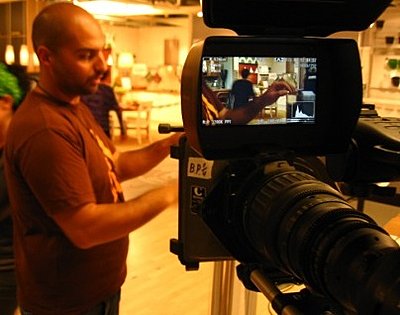

Picture Profile Recipes-copy-005.jpg

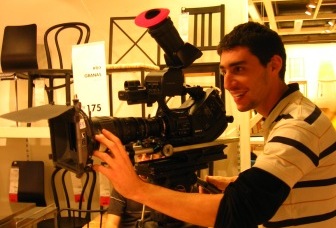

Attached Images

__________________
ram shani-cinematographer
www.ramshani.com
Ram Shani is offline   Reply With Quote
Old February 7th, 2009, 06:52 PM   #422
Sponsor: Abel CineTech

Join Date: Feb 2009
Location: New York, NY
Posts: 360
Here are print outs of my HVX200/HPX170 settings. All the other settings are set to default. I noted that the detail adjustment is subjective because I just eyeballed the difference. The EX1 is notably sharper even at the lowest level. My Black Gamma levels are set very low in order to mimic the fall off of the HVXs Gamma curve. Do note that the Black setting has very minimal adjustment.

HVX Matches for EX1

PP1: Cine V
Matrix
- Select: High Sat
- Level 0
- Phase +2
- R-G -11
- R-B -23
- G-R +38
- G-B 0
- B-R +17
- B-G -23
Detail
- Level 30 (subjective)
- Frequency 15

Gamma
- Level -1
- Select: Cine 1

Black -2
Black Gamma - -99

PP2: Cine D
Matrix
- Select: High Sat
- Level 0
- Phase +6
- R-G +22
- R-B -36
- G-R +19
- G-B 0
- B-R +14
- B-G -16
Detail
- Level 30 (subjective)
- Frequency 15

Gamma
- Level -1
- Select: Cine 1

Black -2
Black Gamma - -96

PP3: HD NORM
Matrix
- Select: Standard
- Level -5
- Phase +1
- R-G +8
- R-B -30
- G-R +15
- G-B -24
- B-R 0
- B-G +10
Detail
- Level 30 (subjective)
- Frequency 15

Gamma
- Level +11
- Select: STD4

Black -1
Black Gamma - -52

PP4: FLUO
Matrix
- Select: FL Light
- Level -8
- Phase -5
- R-G -64
- R-B -24
- G-R +64
- G-B -18
- B-R +24
- B-G -23
Detail
- Level 30 (subjective)
- Frequency 15

Gamma
- Level +11
- Select: STD4

Black -1
Black Gamma - -52
__________________
Andy Shipsides -Camera Technology Specialist
AbelCineTech, New York - Visit our Blog - http://blog.abelcine.com
Andy Shipsides is offline   Reply With Quote
Old February 8th, 2009, 09:24 AM   #423
Trustee

Join Date: Dec 2008
Location: Kennewick, WA
Posts: 1,124
Wow Andy! You've been working hard on this. If I have some time today, I'm going to try your settings. Thanks for doing the work! :)
__________________
Sony EX3, Canon 5D MkII, Chrosziel Matte Box, Sachtler tripod, Steadicam Flyer, Mac Pro, Apple/Adobe software - 20 years as a local videographer/editor
Mitchell Lewis is offline   Reply With Quote
Old February 8th, 2009, 08:38 PM   #424
Regular Crew

Join Date: Jun 2007
Location: Gold Coast, Tweed Heads Australia 2485
Posts: 29
Hey Andy,
Cheers for taking the time!
Mick
Mick Wilcomes is offline   Reply With Quote
Old February 11th, 2009, 05:26 PM   #425
Trustee

Join Date: Dec 2008
Location: Kennewick, WA
Posts: 1,124
Hey Andy,

Can you make an attempt at a description for CineV, CineD, HD Norm and FLUO. I'm guessing that FLUO is for shooting under fluorescent lights.
__________________
Sony EX3, Canon 5D MkII, Chrosziel Matte Box, Sachtler tripod, Steadicam Flyer, Mac Pro, Apple/Adobe software - 20 years as a local videographer/editor
Mitchell Lewis is offline   Reply With Quote
Old February 14th, 2009, 06:41 PM   #426
Major Player

Join Date: Dec 2007
Location: Hertfordshire UK
Posts: 414
Thanks Andy I've been hoping someone would.. You're a star!
Mark David Williams is offline   Reply With Quote
Old February 18th, 2009, 02:36 AM   #427
Regular Crew

Join Date: Jan 2007
Location: norway
Posts: 50
Pp!

this
progresite
is an example of Jim's PP1 from posting #11.
very demanding ligth conditions & very good results IMO ( unfortunately this flv file cannot justify ..)
Idar Lettrem is offline   Reply With Quote
Old February 19th, 2009, 01:57 PM   #428
Regular Crew

Join Date: Nov 2008
Location: St. Louis, MO
Posts: 134
Desert Action

Heading out to the Arizona desert to shoot some action sports next week, cycling in specific. A lone rider, lots of sun, lots of POV and terrain.

I am looking for edgy and cool PP recipes to try out - hoping to have several to try; will post the footage afterward :)

thanks in advance

greg kiger
st louis

EX1 and spf 30 sunscreen
Greg Kiger is offline   Reply With Quote
Old February 24th, 2009, 10:29 AM   #429
Regular Crew

Join Date: Nov 2008
Location: St. Louis, MO
Posts: 134
Blind leading blind

For other newbies out there like myself asking the basic question "what are some good PPs I can go try?" an answer would be to read this whole thread and take lots of notes - I finally did and it's very informative. But if, unlike me you actually have a life and can't spare the time, here at least is a start...

Check out post #120 on page 8 and download Bill Ravens recipes. Move them onto your sxs card (after renaming Bills file as he outlines) and import them onto your EX1 per the manual (page79 Retrieving the set Up File).

Then check out post #262 for the key details on how to use them. Oh yes, and remember to white balance and always wear clean underwear :)

Many thanks to Mr Raven and others for all the great insights!

greg kiger
st louis
pro photog / new to video
Greg Kiger Photography
Greg Kiger is offline   Reply With Quote
Old February 26th, 2009, 12:23 PM   #430
Major Player

Join Date: Aug 2008
Location: Jersey City, NJ
Posts: 244
Stupid question???

when using a picture profile... should a white balance be done before the profile is selected or after? could whoever responds to this one explain why?

My brain is moving extra slow today.

Greg
Greg Chisholm is offline   Reply With Quote
Old February 26th, 2009, 12:45 PM   #431

Join Date: Nov 2001
Location: santa fe, nm
Posts: 3,264
Images: 10
ALWAYS do a white balance first, before shooting, that is. Without doing that, any profile you select will be skewed. It does NOT MATTER whether you do a white balance before or after loading a profile.
Bill Ravens is offline   Reply With Quote
Old February 26th, 2009, 10:02 PM   #432
Trustee

Join Date: Dec 2008
Location: Kennewick, WA
Posts: 1,124
Think of it as a signal path.

Light goes into lens > white balance effects look of picture > PP effects look of picture

You use your white balance as a "base line" or reference for "correct" color. Then the PP tweeks it.

I'm GREATLY over simplifying it, but that helps me get a handle on how white balance and PP interact.


So to take this discussion a step further.....

You could probably white balance on a white card, then use PP to make your picture look like you white balanced on a Warm Card. Right? :)
__________________
Sony EX3, Canon 5D MkII, Chrosziel Matte Box, Sachtler tripod, Steadicam Flyer, Mac Pro, Apple/Adobe software - 20 years as a local videographer/editor
Mitchell Lewis is offline   Reply With Quote
Old February 26th, 2009, 11:41 PM   #433
Inner Circle

Join Date: Jan 2006
Posts: 2,290
Quote:
Originally Posted by Greg Kiger View Post

Check out post #120 on page 8 and download Bill Ravens recipes. Move them onto your sxs card (after renaming Bills file as he outlines) and import them onto your EX1 per the manual (page79 Retrieving the set Up File).



greg kiger
st louis
pro photog / new to video
Greg Kiger Photography
Anyone know what the actual settings are on post 120? My pc can't open the file.
Brian Luce is offline   Reply With Quote
Old February 27th, 2009, 10:53 AM   #434
Regular Crew

Join Date: Dec 2008
Location: Zurich, Switzerland
Posts: 101
So to take this discussion a step further.....

You could probably white balance on a white card, then use PP to make your picture look like you white balanced on a Warm Card. Right? :)[/QUOTE]

Wow - now you really open a can of worms... but its basically true what you say, however I would choose PP settings for different situations and then use a whitebalance on a card or preset which gives you the shift to warm or cold you desire. Warm and cold cards are on the market but you can make them yourself. I have a plain white card taped into the inside of my lens cover... so I always have it with me.

I often shoot theater and dance and always balance to daylight preset in this situation but use a very flat contrast PP to get the most detail in the blacks and highlights. then I make the desired look in post. for outside shoots I prefer a pp that is a bit more snappy in the contrast and colors, but always whitebalance, not like in a theater.
Oliver Neubert is offline   Reply With Quote
Old March 1st, 2009, 10:01 AM   #435
Trustee

Join Date: Dec 2008
Location: Kennewick, WA
Posts: 1,124
I had a shoot yesterday that I thought would take an hour, but when I arrived I found out they had under-scheduled the amount of time it would take to capture everything they wanted. The point is....I was RUNNING.

Anyway, I wanted to share that I shot the whole thing using the following technique:

1) I'd open up my PP (I'm still using Doug's setting from the Vortex Media DVD) and simply dial in the color temperature in the white balance setting:

a) 3200 for shooting under our tungsten studio lights
b) 5600 for shooting outdoors
c) 4100 for shooting under fluorescent lights

You could change the color temp number and watch the color of the scene change in the viewfinder. I never white balanced once and everything looks pretty darn good considering the amount of time I had.

Obviously this wouldn't be the ideal way to work if you were shooting some critical shots where you had plenty of time to set up, but I thought I'd share anyway. :)
__________________
Sony EX3, Canon 5D MkII, Chrosziel Matte Box, Sachtler tripod, Steadicam Flyer, Mac Pro, Apple/Adobe software - 20 years as a local videographer/editor
Mitchell Lewis is offline   Reply
