Sony Unveils First Camcorders with Phase-detection AF

New 4K HDR Palm-style Models Combine Fast Hybrid AF, 1.0-type stacked Exmor RS image sensor, Creative Features and Multi-cam System Capabilities

IBC, Amsterdam, 15 Sep. 2017 — Sony has today announced three new 4K HDR¹camcorders: the XDCAM® PXW-Z90, the NXCAM ® HXR-NX80 and the Handycam® FDR-AX700. Featuring Sony’s ground-breaking Fast Hybrid AF system, all three palm camcorders combine a fast and reliable autofocus (AF) function adapted for shooting with a 1.0-type stacked Exmor RS CMOS image sensor, delivering stunning image clarity alongside a range of versatile shooting features. The new camcorders all support an instant HDR (High Dynamic Range) workflow, enabling users to produce breath-taking HDR content with minimum post-production to suit a range of content creation scenarios and applications.

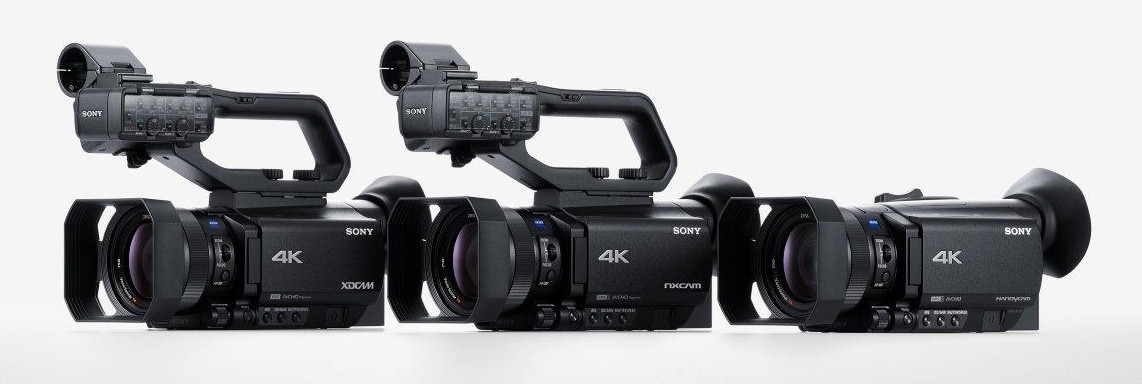

PXW-Z90_.HXR-NX80_FDR-AX700

The Fast Hybrid AF system ensures highly accurate focusing and tracking during shooting, delivered by 273 phase-detection AF points that cover approximately 84% of the shooting area, high-density placement of autofocus points and a newly developed AF algorithm. This reduces the burden of focusing, especially when accurate focusing is required for shooting 4K films. In movie recording mode, the appearance of phase-detection AF frames indicates the focused area and easily allows users to monitor a subject that is in focus. The new camcorders feature a high-resolution OLED viewfinder (0.39-type OLED, 2,359k dots) and advanced touch screen operation, on the 3.5-type large LCD screen (1,555k dots), to allow users to quickly switch focus from one subject to another, while the AF Drive Speed, Tracking Depth Range and Subject Switching Sensitivity can all be configured as required for different subjects and content styles.

The new camcorders support 4K HDR (1) recording with HLG (Hybrid Log-Gamma), offering an instant HDR workflow. This enables users to reduce the post-production work and produce high-quality HDR content without grading, which usually requires a highly skilled technique and specialist knowledge. They also have the following key technology features to support versatile shooting, including;

  • 4K(2) full-pixel readout without pixel binning, using an enhanced BIONZ X™ image processing engine
  • Super Slow Motion(3)recording up to 960fps(4), which is industry leading among palm categories and Slow & Quick Motion (5) Full HD recording up to 120fps (6)
  • S-Log3/S-Gamut3 capabilities for users to create and work with images as they desire.
  • 29mm (7) (35EQ)wide-angle ZEISS® Vario-Sonnar T* 12x optical zoom lens and 18x Clear Image Zoom (8)
  • Less image distortion (rolling shutter phenomenon), in comparison to conventional models, when shooting moving subjects in motion
  • Workflow efficiency benefits such as Proxy recording, relay recording and simultaneous backup recording are also delivered thanks to the new camcorders’ dual memory card slots and multi-camera operation capabilities supported by TC (time code)/UB (user bit). The three new camcorders also have REMOTE terminals, Multi-Interface Shoe™, and HDMI Type A to ensure enhanced operability.

Workflow efficiency benefits such as Proxy recording, relay recording and simultaneous backup recording are also delivered thanks to the new camcorders’ dual memory card slots and multi-camera operation capabilities supported by TC (time code)/UB (user bit). The three new camcorders also have REMOTE terminals, Multi-Interface Shoe™, and HDMI Type A to ensure enhanced operability.

“We strongly believe in empowering customers to tell amazing stories, whether it’s a journalist out in the field covering a breaking news event, or a freelancer working under the tight deadline pressures of a one-day corporate shoot” explained James Leach, European Product Manager, Sony Professional Solutions Europe. “Our new palm camcorders do exactly that. By minimising the efforts required to focus on a subject in-frame and streamlining the post-production workflow, we’re helping users concentrate on what they do best: storytelling.”

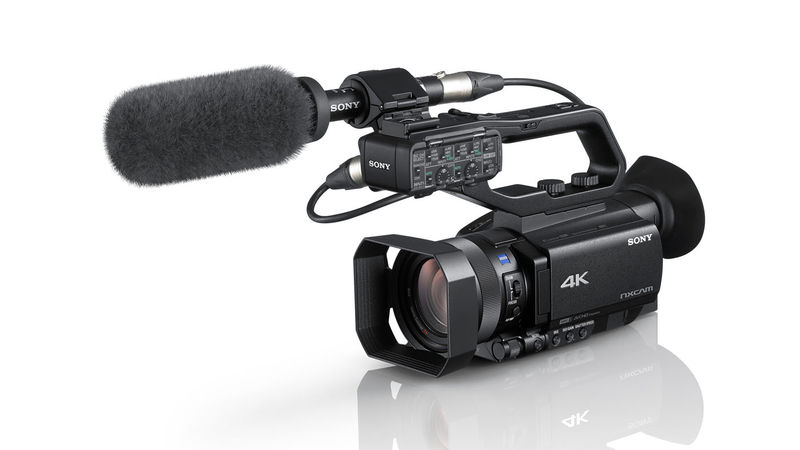

In addition to the above key features as series, the XDCAM® PXW-Z90 and NXCAM® HXR-NX80 also feature dual XLR audio input, a detachable handle, and access to Content Browser Mobile – a supporting smartphone application to enable Wi-Fi® monitoring, Camcorder remote control and wireless timecode sync (9) between multiple cameras.

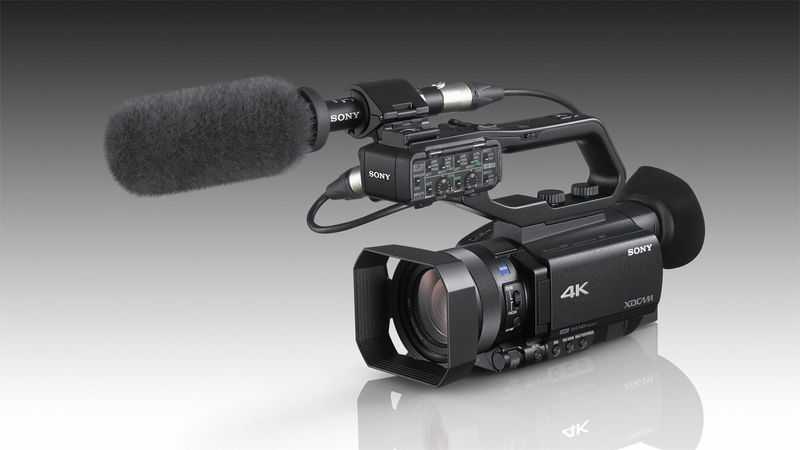

The PXW-Z90 also includes several features to suit broadcast-specific requirements including XAVC®format recording, which provides high-quality images at 4:2:2 10 bit (HD) and 4:2:0 8 bit (QFHD) in addition to conventional broadcasting MPEG2HD9 format recording, 3G SDI connectivity for compatibility with existing broadcasting equipment, and networking functions to support news reporting, such as compatibility with XDCAM® air, the Sony cloud-based ENG subscription service.

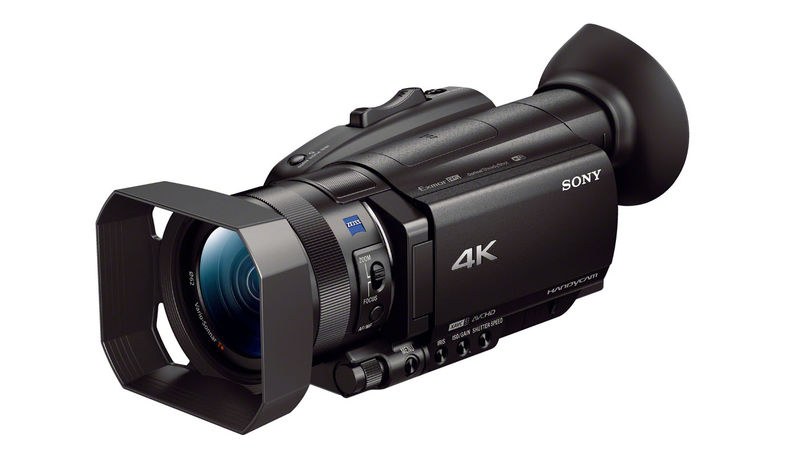

NXCAM® HXR-NX80 and Handycam® FDR-AX700 adopt XAVC S® (10), an extended format of XAVC for consumer use which can record high-defined 4K films.

The following is planned availability and suggested list pricing for the new models:

  • FDR-AX700 – October 2017, $1,899 USD
  • HXR-NX80 – December 2017, $2,299 USD
  • PXW-Z90V – December 2017, $2,799 USD

For more information, please visit www.sony.com/4k-palm.

About Sony

Sony Corporation is a leading manufacturer of audio, video, imaging, game, communications, key device and information technology products for the consumer and professional markets. With its music, pictures, computer entertainment and online businesses, Sony is uniquely positioned to be the leading electronics and entertainment company in the world. Sony recorded consolidated annual sales of approximately $76 billion for the fiscal year ended March 31, 2017. Sony Global Web Site: http://www.sony.net/

1.) 3840 x 2160 pixels. 『FDR-AX700』『HXR-NX80』:Connect this product to a HDR (HLG) compatible Sony TV via a USB cable when displaying HDR movies.『PXW-Z90』:Connect this product to a HDR (HLG) compatible Sony TV via a HDMI cable and TV setting change required when displaying HDR movies.

2.) 3840 x 2160 pixels

3.) 4K recording is not available. Sound cannot be recorded. A class 10 or higher SDHC/SDXC memory card is required.

4.) 960fps in NTSC, 1000fps in PAL

5.) Sound cannot be recorded. UHS-I (U3) SDHC/SDXC memory card is required

6.) 120fps in NTSC, 100fps in PAL

7.) 35mm equivalent

8.) 18x(4K), 24x(HD)

9.) Optional licences required

10).A Class 10 or higher SDHC/SDXC memory card is required to record movies in the XAVC S format. UHS-I (U3) SDHC/SDXC card is required for 100Mbps

FDR-AX700

PXW-Z90

HXR-NX80
