Buyer’s Guide: JVC Professional 4KCAM and ProHD Camcorders

This page shows a lot of data contained in several charts and tables.
It is best viewed on a laptop or desktop display.

jvcproStreaming live video to the internet has been a core feature of JVC Professional camcorders since the introduction of the back in 2002. Streaming capabilities have evolved with the advent of the JVC ProHD line of High Definition camcorders in 2005 and their 4KCAM series of Ultra High Definition camcorders which launched in 2014. This page covers seven current ProHD and 4KCAM camcorders. Jump directly to a particular section with these links:

This guide is primarily targeted to the U.S. market and I have listed U.S. prices. The “where to buy” links on this page refer to DV Info Net site sponsors, all of which are U.S. dealers. At this time I do not have a dealer outside of the U.S. as a site sponsor. However, some dealers such as Adorama and B&H Photo Video will ship overseas to just about anywhere in the world. Currently there are four companies to whom DV Info Net refers sales enquiries for JVC Professional 4KCAM and ProHD series camcorders:

Adorama
(800) 223-2500
New York, NY
B&H Photo
(866) 521-7381
New York, NY
Precision Camera
(512) 467-7676
Austin, TX
Texas Media Systems
(512) 440-1400
Austin, TX

When ordering from B&H Photo, be sure to check their holiday schedule and hours of operation. Precision Camera and Texas Media Systems are full-line JVC Professional dealers, but they do not list everything on their sites. Even if a purchase link is not available here, you can still order the camera if you contact them directly by phone or online.

How To Read The Comparison Chart

The forward slash data separator “/” indicates a difference between models within a column. In the lens row, the equivalent 35mm focal length range in millimeters is stated in parenthesis, followed by the filter thread diameter. The focal length range is approximate due space constraints in the chart. The linked brochures for each camcorder go into more detail about various technologies and features. The video row gives only the maximum resolution and frame rate for that model; all of these camcorders offer a variety of resolution and frame rate options. The same is true for the format row. The number before the format, such as 50 MOV, indicates the maximum bit rate in megabits per second. In the included and optional battery rows, the figures in parenthesis to the right of the battery model numbers are the approximate endurance in hours and minutes for typical recording with the LCD screen open. Mouse over the metric weight value to see the Imperial equivalent in a pop-up.

Be advised that the indicated prices shown on this page are at or near the full MSRP (the manufacturer’s suggested retail price) and may not reflect current discounts and promotions offered by dealers. In most cases — that is, for all models except those most recently announced — the actual amount charged by a dealer will most likely be well below the prices given here.


JVC 4KCAM and ProHD series Camcorders for 2018H1
  4KCAM ProHD

model:
date:
sensor:
proc:
GY-HM180
GY-HM250

(4.2018)
12.4 Mp 1/2.3″
unspecified

GY-LS300

(11.2014)
13.5 Mp S35
FALCONBRID II
GY-HM620
GY-HM660

(4.2016)
3 x 2.5 Mp 1/3″
2 x FALCONBRID*
GY-HM850
GY-HM890

(2.2014)
3 x 2.2 Mp 1/3″
2 x FALCONBRID
lens:
type:
max ap. w-t:
12x (30-355) ⌀62
Fujinon integrated
f/1.2 – f/3.5
not included
Micro Four Thirds
varies
23x (29-667) ⌀72
Fujinon integrated
f/1.6 – f/3.0
20x (29-580) ⌀72
Fujinon 1/3″ 8-pin
f/1.6 – f/3.0
depth:
video:
format:
8-bit 4:2:2
UHD 30p, FHD 60p
150, 50 XHQ MOV
8-bit 4:2:2
UHD 30p, FHD 60p
150, 50 XHQ MOV
8-bit 4:2:2
FHD 60p
50 XHQ MOV**
8-bit 4:2:2
FHD 60p
50 XHQ MOV**
SDI, GL, TC:
EVF & LCD:
media:
3G-SDI
0.24″ LCOS & 3.5″
2 x SDXC or SDHC
3G-SDI
0.24″ LCOS & 3.5″
2 x SDXC or SDHC
HD-SDI, TC
0.45″ LCOS & 3.5″
2 x SDXC or SDHC
3G-SDI, GL, TC
0.45″ LCOS & 4.3″
2 x SDXC or SDHC
remote:
incl. batt:
opt. batt:
LANC / LANC, IP
BN-VF823 / JVC50
BN-S8823 / JVC75
LANC, IP
JVC50
JVC75
LANC / LANC, IP
JVC50 (2:45)
JVC75
LANC, IP, CCU***
3rd-party V-mount
IDX E-HL9 (87 Wh)
stream:
weight:
price:
no / yes [1]
1.5kg / 1.6kg
<$1,800 / <$2,250
yes [1]
1.7kg
<$4,400
no / yes [2]
2.4kg / 2.5kg
<$3,200 / <$5,500
yes [2]
4.8kg / 4.8kg
<$8,000 / <$10,000
*one FALCONBRID processor in the GY-HM620.
**plus 35 MP4 in the GY-HM620 and 35 MXF, MP4 in the GY-HM660, 850 & 890.
*** JVC RM-LP25 for the GY-HM850 and JVC RM-LP25, multicore or fiber CCU for the GY-HM890.
[1] USB host (4G LTE, WiFi, LAN), FTP, Zixi, UDP, RTMP, RTSP/RTP up to 12 Mbps in the GY-HM250 & 300.
[2] same as [1] plus IFB return audio in the GY-HM660, 850 & 890.


Features Common to All 4KCAM series Camcorders

All are single-chip Ultra-High Definition camcorders with 12.4 Mp 1/2.3-inch CMOS image sensors, except for the LS300, which has a 13.5 Mp Super 35 CMOS sensor. All include a removable top handle which houses two XLR audio inputs and controls for two channels of audio. All have two SDHC / SDXC card slots for dual recording, relay recording and backup recording. All record MOV or AVCHD files, in Full HD up to 120p and 4K at 30p or 24p. All record Full HD up to 50Mbps or 4K at either 150Mbps, which requires UHS-1 U3 cards or faster, or 70 Mbps. All except the LS300 have an integrated Fujinon 12x optical zoom lens with autofocus, image stabilization, neutral density filters, dynamic zoom capability and dedicated manual focus, iris and zoom rings. All except the HM180 have FTP and a Zixi engine providing real-time Full HD live streaming capability up to 12 megabits per second over 4G LTE, 3G, WiFi and Ethernet. All have SDI output.

Features Common to All ProHD series Camcorders

All are three-chip Full HD camcorders with 1/3rd-inch CMOS image sensors. All have flash band compensation to combat rolling shutter effects. The handhelds record two audio channels while the shoulder-mounts record four audio channels. All have two XLR inputs and a stereo mini-jack. All have two FALCONBRID image processors except the HM620, which has one. All have two SDHC / SDXC card slots for dual recording and relay recording up to 50Mbps. All except the HM620 offer combination recording (simultaneous to both cards at different resolutions). All record MOV, MXF, MP4 or AVCHD (except the HM620 which does not record MXF). All except the HM620 have built-in GPS. All except the HM620 have FTP; a Zixi engine providing real-time Full HD live streaming capability up to 12 megabits per second over 4G LTE, 3G, WiFi and Ethernet; and are remotely controllable over IP. All except the HM620 have interruptible foldback return audio (IFB) for remote one-way or two-way communication in ENG or live production environments. All have SDI output and TimeCode input and output.

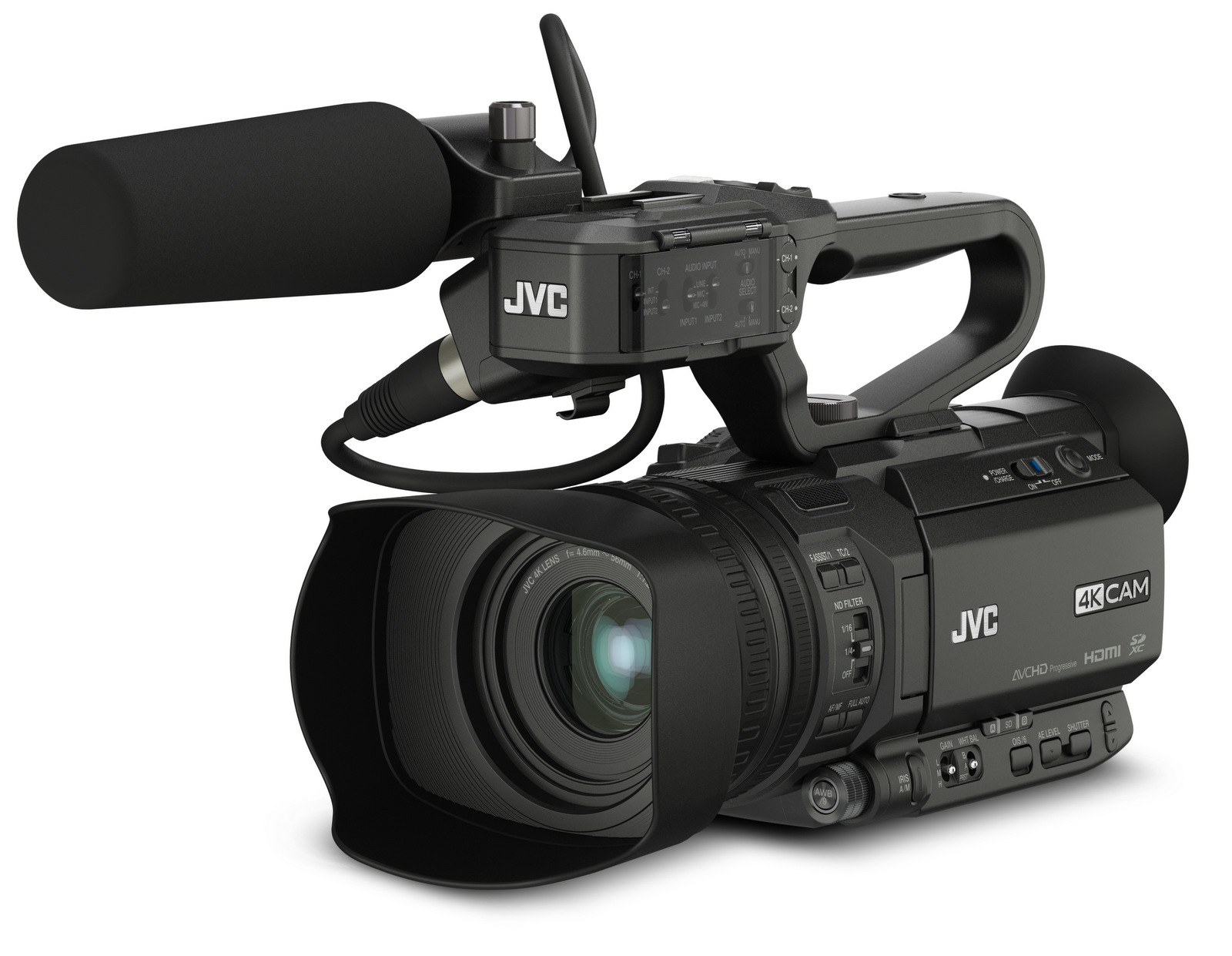

GY-HM200_perspective_shadow4KCAM GY-HM180 / GY-HM250
Support   ·   Press Release   ·   User Manual
HM180    JVC product page   ·   Brochure   ·   Firmware
HM250    JVC product page   ·   Brochure   ·   Firmware
(links to be updated when available)

GY-HM180U    Adorama B & H Photo Precision
GY-HM250U    Adorama B & H Photo Precision

An updated version of the previous JVC 4KCAM GY-HM200, the new HM250 is a compact camcorder that records 3840 x 2160 Ultra-High Definition video at 150Mbps or 70Mbps to dual SDXC cards and streams Full HD video at 12Mbps live to the internet. The HM250 incorporates a special feature previously limited to the former GY-HM200HW House of Worship variant model — the ability to add a full-screen graphic, a lower third, a logo “bug” or a watermark overlay directly to the video while recording and / or streaming live. Other new features include 4:2:2 recording for 4K 30p and 24p, and 4K 60p over the HDMI output. It has a tele macro shooting mode for improved focus on close objects, and a new Zero Config function enabling automatic, single-click setup when it joins the same local network as other cameras.

Sports Production    GY-HM250SP    <$2,800
JVC product page  ·  Press Release  ·  Brochure
IAdorama B & H Photo Texas Media

A variant model of this camcorder, the GY-HM250SP for sports production, has the added capability to embed live scoreboard data automatically via ScoreBot from SportzCast, or manually over WiFi via smartphone or tablet using software provided by JVC. The realtime score overlay can go out over the live stream with or without simultaneously recording to video. Otherwise it is the same as the HM250.

The less expensive GY-HM180 is the same camcorder as the HM250 except it does not include live streaming capability, FTP, or web-based remote control. It uses a different battery type (7.2v) than the HM250 or 300 (7.4v). The HM180 also has an SDI jack, which is an upgrade over the previous model HM170.

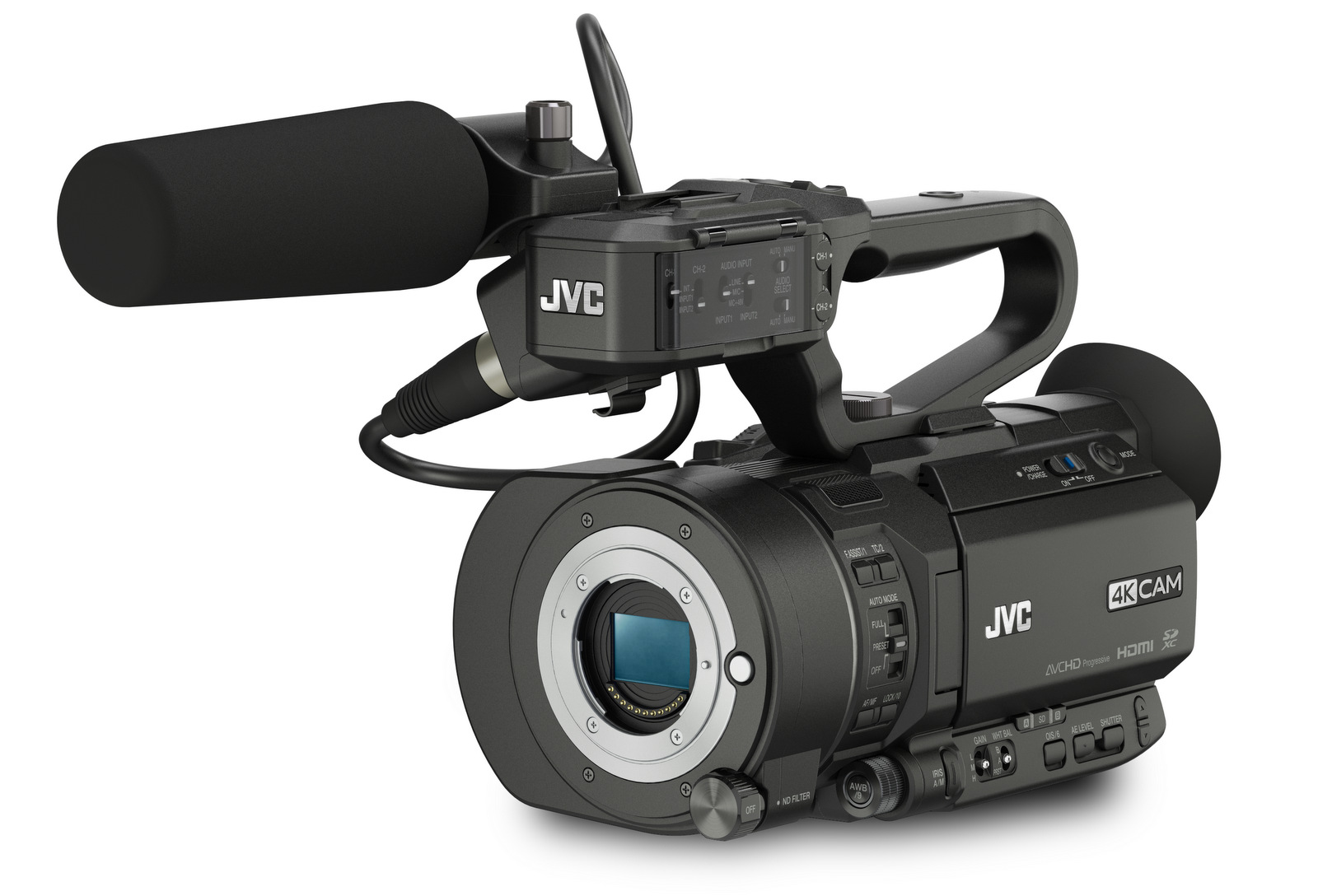

GY-LS300_preset_shadow4KCAM GY-LS300 JVC product page   ·   Support
Brochure   ·   Firmware   ·   Press Release   ·   User Manual

Adorama B & H Photo Precision Texas Media

The “LS” in this model number stands for Large Sensor. This is the same camera body as the GY-HM200 (the model previous to the current GY-HM250), with the built-in 12x lens removed. In its place is a Micro Four Thirds lens mount, compatible with a broad variety of third-party glass. Behind it is a larger Super 35 sensor made by AltaSens. This sensor has a unique feature called VRSM (variable scan mapping). This allows the retention of native angles of view for Super 35, Micro Four Thirds and Super 16 lenses without vignetting. Another benefit of VRSM is a feature called Prime Zoom. When used with an MFT prime lens, it dynamically re-maps pixels without resolution loss in order to “zoom through” the image area of the prime lens. The range of the minimum to maximum scan area is adjustable through the camera’s zoom rocker, providing a 1.2x zoom in 4K or a 2.3x zoom in HD. This camera offers 17:9 Cinema 4K and Cinema 2K modes with true 24p. Otherwise, it is identical to the HM200 with regard to live streaming capabilities and all other features. Overseas this camcorder is sold as the GY-LS300CHE.

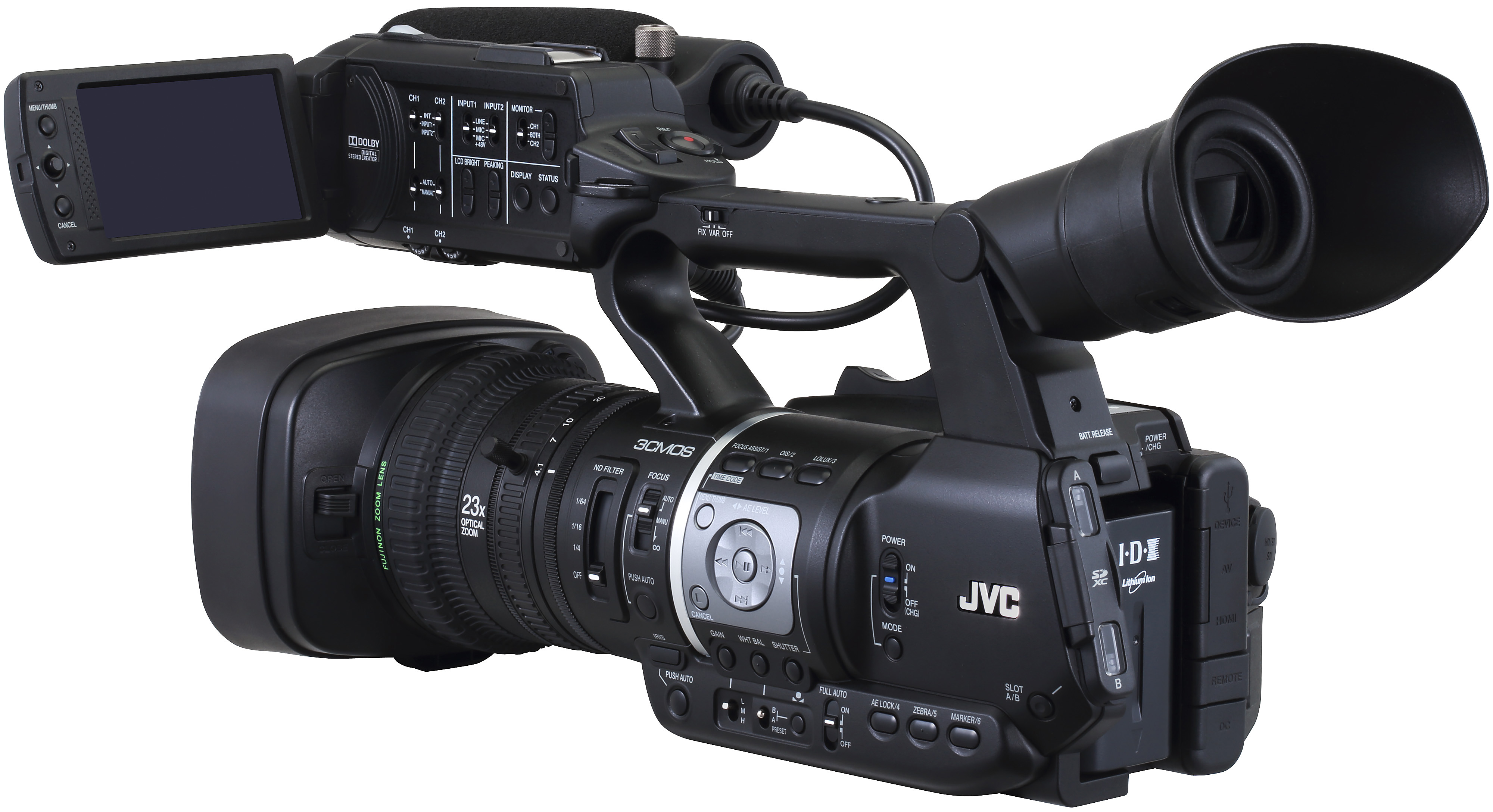

620_backProHD GY-HM620 / GY-HM660
Support   ·   Press Release   ·   User Manual
HM620    JVC product page  ·  Brochure  ·  Firmware
HM660    JVC product page  ·  Brochure  ·  Firmware

GY-HM620U    Adorama B & H Photo
GY-HM660U    Adorama B & H Photo

The GY-HM660 is a portable three-chip 1/3rd-inch Full HD handheld camcorder intended primarily for live television sports and news production, although it is fully capable of serving a wide variety of other video production applications. It is smaller and lighter than its shoulder-mount ProHD cousins, but it features the same high-quality live streaming stability as the large cameras, using the SMPTE 2022-1 protocol for forward error correction. It has an integrated Fujinon 23x optical zoom lens with autofocus, image stabilization, neutral density filters, dynamic zoom capability and dedicated manual focus, iris and zoom rings. Remote control is available over LANC or IP. Remote viewing is available over IP, allowing one person to operate more than one camera at a time. IFB return audio capability allows the smaller HM660 to dovetail into an existing large camera ENG pool.

A variant model, the GY-HM660SC, integrates seamlessly with the popular XOS Thunder HD sports coaching system. It synchronizes the system’s biometric and positional player data with GPS time-stamped video and automatically streams it to the XOS server platform. Otherwise it’s the same camcorder as the GY-HM660.

Sports Coaching GY-HM660SC    JVC product page  ·  Press Release  ·  Brochure    <$6,800    B & H Photo

The less expensive GY-HM620 does not include live streaming capability, GPS, return audio, FTP, web-based remote control, the ability to record the MXF file format, or the ability to write different file types during dual card recording. It has a single FALCONBRID processor.

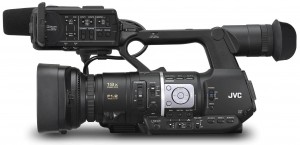

JVC-JYHM360-CamaraThe JY-HM360 is a lower priced single-chip version of the HM620. Not available in North America, it was introduced to Europe and Australia in Jan. 2017 and is targeted directly at the wedding market. The sensor is an 18.9 Mp 2/3rd-inch CMOS. It has an image-stabilized 10x optical zoom with a max. aperture of f/1.2 at full wide and f/2.8 at full tele and extends to 19x with Dynamic Zoom enabled. This lens has a 46mm filter thread diameter and the aperture is controlled via thumbwheel instead of a dedicated iris ring. There’s no SDI jack but otherwise it’s the same camcorder as the GY-HM620.

Weddings    JY-HM360E    JVC product page  ·  Press Release  ·  Brochure    <€1,300    (EU / AU only)

In Europe and Australia the ProHD handhelds are sold as the GY-HM620RE and the GY-HM-660RE.

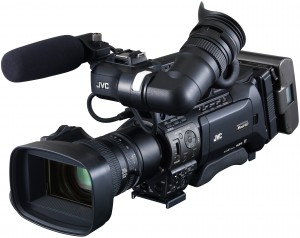

gyhm850-890_standardProHD GY-HM850 / GY-HM890
Support   ·   Press Release   ·   User Manual
HM850    JVC product page   ·   Brochure   ·   Firmware
HM890    JVC product page   ·   Brochure   ·   Firmware

GY-HM850U    Adorama B & H Photo Texas Media
GY-HM890U    Adorama B & H Photo Texas Media

The HM850 and 890 continue the unique JVC ProHD form factor of their compact “half-height” shoulder-mount three-chip 1/3rd-inch interchangeable lens broadcast camera systems, first introduced in April 2005 with the GY-HD100. The base kit for both of these cameras includes a Fujinon 1/3″ bayonet-mount 20x zoom lens with autofocus and optical image stabilization. There are other packages available which pair the cameras with faster Fujinon or Canon 1/3″ manual-focus broadcast video lenses, or just the camera itself without a lens:

camera body only, without lens
GY-HM850CHU   <$5,600   Adorama B&H Photo
GY-HM890CHU   <$8,300   Adorama B&H Photo

with 14x Canon KT14x44KRS HDgc lens
GY-HM850C14   <$6,500   Adorama B&H Photo
GY-HM890C14   <$9,700   Adorama B&H Photo

with 17x Fujinon XT17sx4.5BRM eXceed lens
GY-HM850F17   <$9,000    Adorama B&H Photo
GY-HM890F17   <$11,000   Adorama B&H Photo

with 20x Fujinon XT20sx4.7BRM eXceed lens
GY-HM850F20   <$11,000   Adorama B&H Photo
GY-HM890F20   <$13,000   Adorama B&H Photo

With built-in live-streaming capability and broadcast lens options, these cameras are popular choices for television news stations, and they are currently used in a significant percentage of Designated Market Areas across the United States. They are built for field production, but JVC offers a variety of accessories, such as the FS-900 MultiDyne fiber optic system, RM-LP25U console remote, and the KA-790G studio sled which transform the HM890 into a fully capable studio camera.

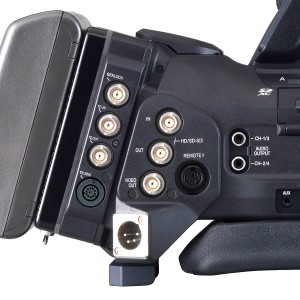

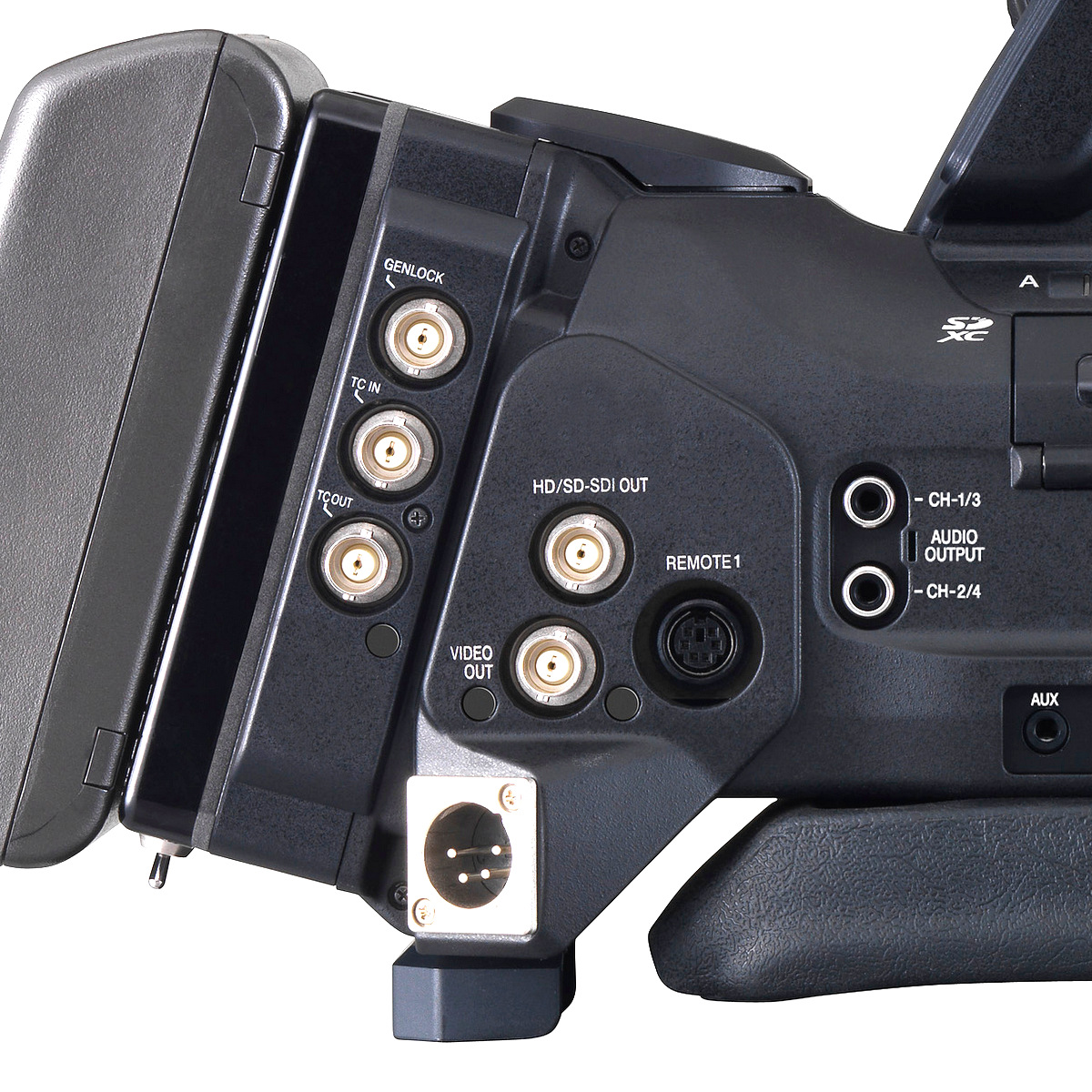

gyhm850_right gyhm890_right

The only physical difference between the HM850 (above left) and the HM890 (above right) is that the HM890 includes an HD-SDI pool feed input jack and a 68-pin expansion port for studio use, while the HM850 does not have these connections. Both cameras offer HD-SDI output, GenLock, TimeCode input and output, and are otherwise identical with regard to streaming capabilities and all other features. In short, the HM850 is a television news field production camera, while the HM890 is the same camera equipped with upgrades for easy integration into a television news studio environment.

In Europe and Australia these camcorders are sold as the GY-HM850RE (with lens) and GY-HMRCHE (without lens), and the GY-HM890RE (with lens) and GY-HM890RCHE (without lens).
